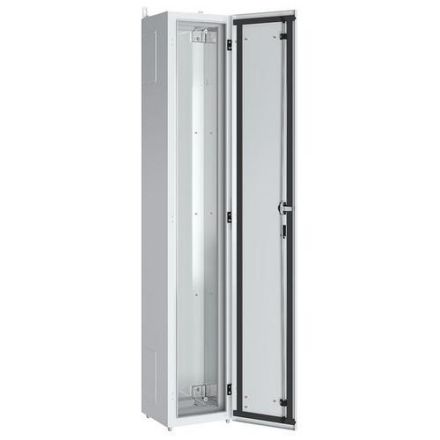

Floor-standing housing, 340 mm deep, NT...E series, earthed K, . closed on the sides. External dimensions W x H x D (mm) 340 x 1890 x 340. Width 1. Height 12. PLE 144. Floor-standing housing, 340 mm deep, NT...E series. Protection class II (NT...P series), protection class I (NT...E series). Protection type: IP55 (only in conjunction with cable entry plates). For devices up to 1200 A. Floor-standing installation with external fastening. Widths: 340, 590, 840, 1090, 1340 mm. Height: 1890 mm without base. Depth: 340 mm. Color: RAL 9016 (traffic white). Space units: 144 to 720. Material: 1.5 mm (doors 2 mm) sheet steel, powder-coated. On both sides either with closed feed-through openings or open (B). Cable entry plates of your choice with metric pre-punches, membrane flange or foam rubber plate. Can be combined horizontally and vertically. Door surface-mounted, can be hinged on the right or left with an opening angle of 180°, 3 mm double-bit lock with 3-point rod lock. Prepared for the installation of standardized module kits on NT support profiles or for continuous mounting plates including scaffolding bracket NGTU10N2*. DIN EN 61439-1 (VDE0660 Part 600-1). * Note NGTU10N2:. Scaffolding brackets are included as follows:. Field width 1 and 2 (340 mm and 590 mm) - 1 set. Field width 3 and 4 (840 mm and 1090 mm) - 2 sets. Field width 5 (1340 mm) - 3 sets.
