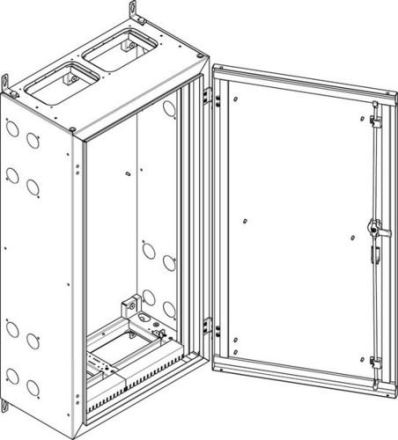

Wall housing, 340 mm deep, earthed K. External dimensions W x H x D (mm) 590 x 1140 x 340. Width 2. Height 7. PLE 168. Wall housing, 340 mm deep. Protection class II (NT..P series), protection class I (NT..E series). Protection type: IP55. For devices up to 630 A. Wall mounting with external fastening. Widths: 340, 590, 840, 1090, 1340 mm. Heights: 690, 840, 990, 1140, 1290, 1440 mm. Depth: 280 mm. Color: RAL 9016 (traffic white). Space units: 48 to 540. Material: 1.5 mm (doors 2 mm) sheet steel, powder-coated. Pre-punched on both sides for M6 housing connections and M50 screw connections. Cable entry plates of your choice with metric pre-punches, membrane flange or foam rubber plate. Can be combined horizontally and vertically. Door can be placed on top, can be hinged on the right or left with an opening angle of 180°. 3 mm double-bit lock with 3-point rod lock. Prepared for the installation of standardized module kits on NT/ST support profiles or for continuous mounting plates including support frame bracket NGTU10N2*. DIN EN 61439-1 (VDE0660 Part 600-1). * Note NGTU10N2:. Support frame brackets are included as follows:. Field width 1 and 2 (340 mm and 590 mm) - 1 set. Field width 3 and 4 (840 mm and 1090 mm) - 2 sets. Field width 5 (1340 mm) - 3 sets.
