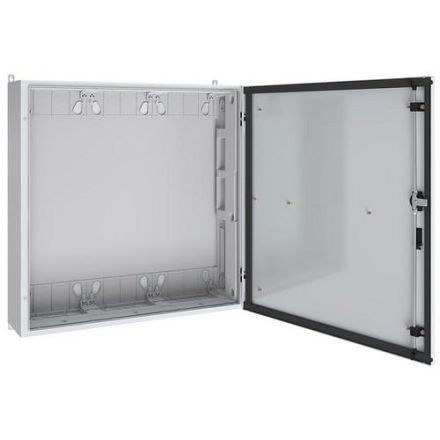

Wall housing, 225 mm deep, double insulated Y. External dimensions W x H x D (mm) 800 x 800 x 225. Width 3. Height 5. PLE 180. Wall housing, 225 mm deep. Protection class II (SP series), protection class I (SE series). Protection type: IP54. For devices up to 400 A. Surface mounting with external fastening. Widths: 300, 550, 800, 1050, 1300 mm. Heights: 500, 650, 800, 950, 1100, 1250, 1400 mm. Depth: 225 mm. Color: RAL 9016 (traffic white). Space units: 36 to 540. Material: 1.5 mm (door 2 mm) sheet steel, powder-coated. Pre-punched on both sides for M6 housing connection. Cable entries 2K membrane flange at the bottom and top, 35 x per field. Can be combined horizontally and vertically. Door surface-mounted, can be hinged on the right or left, with opening angle of 270°, 3mm double-bit lock with 3-point rod lock. Prepared for the installation of standardized module kits on NT support profiles or for continuous mounting plates. DIN EN 61439-1 (VDE0660 Part 600-1).
