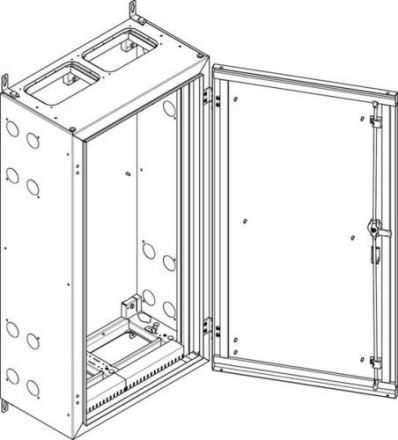

Wall housing, 340 mm deep, double insulated Y. External dimensions W x H x D (mm) 590 x 1140 x 340. Width 2. Height 7. PLE 168. Wall housing, 340 mm deep. Protection class II (NT..P series), protection class I (NT..E series). Protection type: IP55. For devices up to 630 A. Wall mounting with external fastening. Widths: 340, 590, 840, 1090, 1340 mm. Heights: 690, 840, 990, 1140, 1290, 1440 mm. Depth: 280 mm. Color: RAL 9016 (traffic white). Space units: 48 to 540. Material: 1.5 mm (doors 2 mm) sheet steel, powder-coated. Pre-punched on both sides for M6 housing connections and M50 screw connections. Cable entry plates of your choice with metric pre-punches, membrane flange or foam rubber plate. Can be combined horizontally and vertically. Door can be placed on the right or left with an opening angle of 180°. 3 mm double-bit lock with 3-point rod lock. Prepared for the installation of standardized module kits on NT/ST support profiles or for continuous mounting plates including support frame bracket NGTU10N2*. DIN EN 61439-1 (VDE0660 Part 600-1). * Note NGTU10N2:. Support frame brackets are included as follows:. Field width 1 and 2 (340 mm and 590 mm) - 1 set. Field width 3 and 4 (840 mm and 1090 mm) - 2 sets. Field width 5 (1340 mm) - 3 sets.
