ABN mounting plate 1 cylinder inserted connection column (SL175P)

ABN mounting plate 1 cylinder inserted connection column (SL175P)

In stock

SKU: 777690

Price on request

€752.66

€0

Into a basketIn the basketGo

Overview

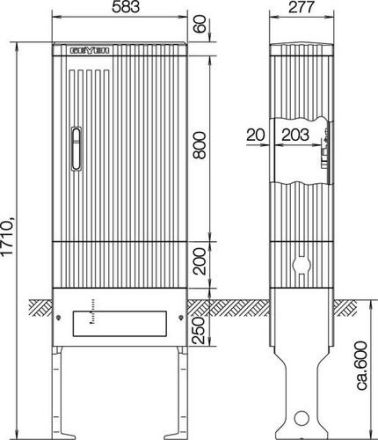

Connection column FB2, BH5, with mounting plate, 1 cylinder installed

Property	Value
Height:	1710 mm
Width:	583 mm
Depth:	277 mm
Installation depth:	1610 mm
Inner depth:	217 mm
Protection type (IP):	IP44
Protection class:	II
Impact resistance:	IK10
Material of Housing:	Plastic
RAL number:	7035
Mounting type:	Floor installation
Suitable for outdoor use:	yes
Surface:	untreated
Suitable for lightning protection:	no
Mounting option:	yes
With mounting plate:	yes
Number of modules:	2
Number of openings for flange plates:	1
Type of cover:	door
Type of Door:	Single
Cover design:	closed
Width in division units:	24
Functional integrity:	without
Material thickness of housing:	3 mm
Material thickness of door/cover:	3 mm
With lock:	yes
Rated current (In):	400 A
Transparent cover/door:	no
Color:	gray
Protection class (NEMA):	other

Characteristics

HABSL175P mounting plate 1 cylinder entered.

Manufacturer

HANSL175P

GTIN4015153172470

Cultivation optionYes

Number of modules2

Number of openings for flange plates1

Type of coverDoor

Type of doorSingles

Cover designClosed

Width583 mm

Width in pitch units24

Installation depth1610 mm

Color

Functional preservationWithout

Suitable for outdoor useYes

Suitable for lightning protectionNo

Height1710 mm

Internal depth217 mm

Housing material thickness3 mm

Material thickness door/lid3 mm

With mounting plateYes

With lockYes

Mounting typeFloor installation

Nominal current (In)400A

SurfaceUntreated

RAL number7035

Impact resistanceIK10

IP protection)IP44

Protection class (NEMA)Other

Protection classII

Depth277 mm

Transparent lid/doorNo

Housing materialPlastic
