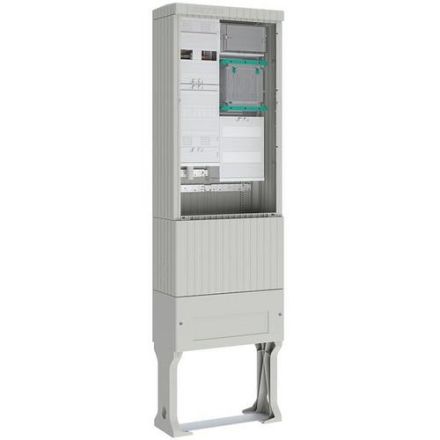

ABN SZ205EA2401 2 eHZ APZ 4-pol.HLAK 25qmm IP54 ZP-Abd meter connection column

In stock
SKU: 934120
€2,806.78
Into a basketIn the basketGo

Overview

Meter connection column with APZ room consisting of: 2xeHZ cassette 16mm² wired with OKK and 5-pole main line branch terminal, 1xIP54 meter cover, busbar system 4-pole, 4x connection terminals 16mm², 1x mounting device for house connection box incl. cable set for SAS 25mm²

PropertyValue
Number of meter spaces:2
Number of distribution rows:2
Number of fields:2
Height:2010 mm
Width:583 mm
Depth:227 mm
Protection class (IP):IP54
Version:eHZ
Lower connection compartment:with 5-pole busbar
Material:Plastic
With mounting plate:no
Mounting type:Surface-mounted
Installation width:500 mm
Installation height:1000 mm
Installation depth:200 mm

Characteristics

Number of fields2
HAB2 eHZ APZ 4-pol.HLAK 25qmm IP54 ZP-Abd
ManufacturerABN
HANSZ205EA2401
GTIN4015153789500
Number of distribution rows2
Number of meter slots2
VersionEHZ
Width583 mm
Installation width500 mm
Installation height1000 mm
Installation depth200 mm
Height2010 mm
With mounting plateNo
Mounting typeSurface-mounted
IP protection)IP54
Depth227 mm
Lower connection compartmentWith busbar 5-pole
MaterialPlastic
ABN SZ205EA2401 2 eHZ APZ 4-pol.HLAK 25qmm IP54 ZP-Abd meter connection column
ABN SZ205EA2401 2 eHZ APZ 4-pol.HLAK 25qmm IP54 ZP-Abd meter connection column
€2,806.78
