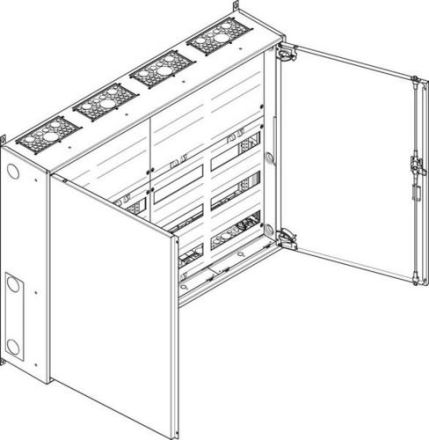

ABN 3RE REG/2RE terminal wall housing (S45RK032)

ABN 3RE REG/2RE terminal wall housing (S45RK032)

In stock

SKU: 780275

Price on request

€994.89

€0

Into a basketIn the basketGo

Overview

S45RK032 3RE REG/2RE terminal wall housing Manufacturer article number: S45RK032

Property	Value
Height:	800 mm
Width:	1050 mm
Depth:	210 mm
Installation depth:	190 mm
Inner depth:	210 mm
Protection type (IP):	IP43
Protection class:	II
Impact resistance:	IK09
Housing material:	Sheet steel/plastic
RAL number:	9016
Mounting type:	Surface-mounted
Suitable for outdoor use:	no
Surface:	powder-coated
Suitable for lightning protection:	yes
Mounting option:	yes
With mounting plate:	no
Number of cable entries:	320
Number of modules:	1
Number of openings for flange plates:	8
Number of rows:	4
Type of cover:	Door
Type of door:	Double
Cover design:	without
Width in division units:	48
Functional integrity:	without
Material thickness housing:	1.5 mm
Material thickness door/cover:	2 mm
With lock:	no
Nominal current (In):	400 A
Transparent Lid/door:	no
Color:	white
Protection class (NEMA):	other

Characteristics

HABS45RK032 3RE REG/2RE terminals

Manufacturer

HANS45RK032

GTIN4015153668287

Cultivation optionYes

Number of cable entries320

Number of modules1

Number of rows4

Number of openings for flange plates8

Type of coverDoor

Type of doorDouble

Cover designWithout

Width1050 mm

Width in pitch units48

Installation depth190 mm

Color

Functional preservationWithout

Suitable for outdoor useNo

Suitable for lightning protectionYes

Height800 mm

Internal depth210 mm

Housing material thickness1.5 mm

Material thickness door/lid2 mm

With mounting plateNo

With lockNo

Mounting typeSurface-mounted

Nominal current (In)400A

SurfacePowder coated

RAL number9016

Impact resistanceIK09

IP protection)IP43

Protection class (NEMA)Other

Protection classII

Depth210 mm

Transparent lid/doorNo

Housing materialSheet steel/plastic

ABN 3RE REG/2RE terminal wall housing (S45RK032)

ABN 3RE REG/2RE terminal wall housing (S45RK032)

Price on request

€994.89

€0

Into a basketIn the basketGo
