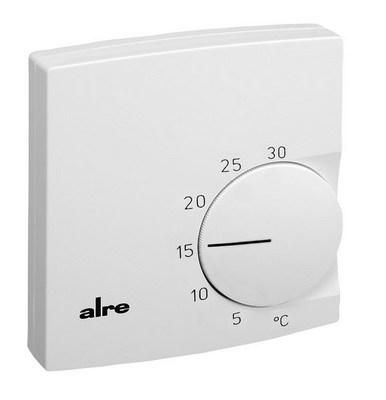

Electronic surface-mounted climate controller for heating and cooling control in mixing chambers in hotels, residential and business premises. For controlling continuous valve drives or air flaps. The factory-set zero point of approx. 21°C can be adjusted by +/- 5K in the device. The target temperature can be adjusted in the range of +/- 3K around the set zero point using the adjustment knob.
| Property | Value |
| Type of power supply: | 24 V AC |
| Mounting type: | Surface-mounted |
| Protection class (IP): | IP30 |
| RAL number: | 9010 |
| Height: | 83.4 mm |
| Width: | 78.3 mm |
| Depth: | 25.5 mm |
| Heating: | yes |
| Number of heating outputs: | 1 |
| Number of outputs Cooling: | 1 |
| Operation: | Rotary |
| Connection: | three-/four-wire |
| Sensor external: | no |
| Thermal feedback: | without |
| Difference adjustable: | no |
| Temperature readable: | no |
| Sensor design: | Resistance sensor |
| Max. contact load: | 0.005 A |
| Explosion-proof: | no |
