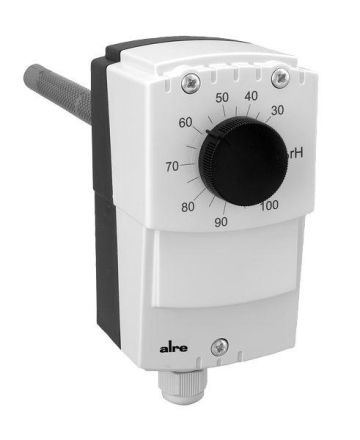

Alre-It JA010300 HI-2 external setting IP65 duct humidistat

In stock
SKU: 706509
€279.16
Into a basketIn the basketGo

Overview

Use in ventilation and air conditioning ducts, climate cabinets and dehumidifiers for controlling and/or monitoring air humidity in industry and agriculture. Not suitable for aggressive gases. Max. air speed 8 m/s, with sensor protection FS-HI 15 m/s. The hysteresis between the levels is adjustable in the range of 3...15% rH. Mechanical range restriction possible with the setting flags located under the setpoint knob.

PropertyValue
Lower measuring range (relative humidity):30 %
Upper measuring range (relative humidity):100 %
Switching difference adjustable:no
Difference range/switching hysteresis:5 %
Number of switching steps:2
Difference between switching steps (relative humidity):3 %
Measuring element type:Plastic element
Max. medium temperature (continuous operation):60 °C
Max. Contact voltage:230 V
Max. contact load:15 A
Contact locking:no
Protection class (IP):IP65
Explosion-proof:no
Color:gray
RAL number:7016
Height:130 mm
Width:71 mm
Depth:67.5 mm

Characteristics

HABHI-2 outdoor setting IP65
ManufacturerAlre-It
HANJA010300
GTIN4050528046659
Width71 mm
Explosion-proofNo
ColorGray
Height130 mm
RAL number7016
IP protection)IP65
Depth67.5 mm
