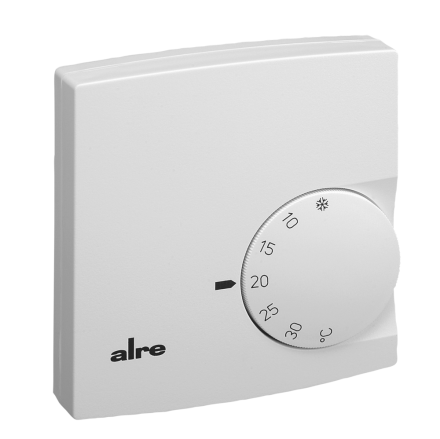

Alre-It MA011200 RTBSB-001.045 AP with switch room temperature controller B2000

In stock
SKU: 706312
€36.27
Into a basketIn the basketGo

Overview

Electromechanical room temperature controller in a surface-mounted housing for controlling or monitoring temperatures in offices, living rooms and hotels. Suitable for all types of heating. The thermal feedback achieves a very precise switching difference. The setting range can be changed using the range restriction located under the setting knob.

PropertyValue
Type of power supply:230 V AC
Mounting type:Surface-mounted
Protection class (IP):IP30
RAL number:9010
Height:83.4 mm
Width:78.3 mm
Depth:25.5 mm
Heating:yes
Number of heating outputs:1
Number of outputs Cooling:1
Operation:Rotary
Connection:three-/four-wire
Sensor external:no
Thermal feedback:parallel
Control characteristics:P
Difference value:1.5 K
Difference adjustable:no
Temperature readable:no
Sensor design:Bimetal
Max. Contact voltage:230 V
Max. contact load:10 A
Explosion-proof:no
Temperature controller class:I

Characteristics

OperationTurn
Class of temperature controllerI
Sensor/sensor designBimetal
Temperature can be readNo
HABRTBSB-001.045 AP with switch
ManufacturerAlre-It
HANMA011200
GTIN4050528049735
Width78.3 mm
Explosion-proofNo
Height83.4 mm
Mounting typeSurface-mounted
RAL number9010
IP protection)IP30
Depth25.5 mm
