Alre-It MA011700 RTBSB-001.202 AP 24V opener room temperature controller B2000

In stock
SKU: 706362
€34.06
Into a basketIn the basketGo

Overview

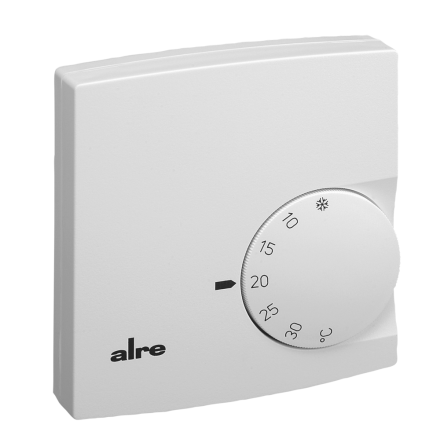

Electromechanical room temperature controller in a surface-mounted housing for controlling or monitoring temperatures in offices, living rooms and hotels. Suitable for hot water heating systems. The thermal feedback achieves a very precise switching difference. The setting range can be changed using the range restriction located under the setting knob. When the ECO terminal is connected to 24 VAC (e.g. with a clock controller or timer), the temperature is regulated to a temperature that is approx. 4K lower.

PropertyValue
Type of power supply:24 V AC
Mounting type:Surface-mounted
Protection class (IP):IP30
RAL number:9010
Height:83.4 mm
Width:78.3 mm
Depth:25.5 mm
Heating:yes
Number of heating outputs:1
Operation:rotary
Connection:three-/four-wire
Sensor external:no
Thermal feedback:parallel
Control characteristic:P
Difference value:0.5 K
Difference adjustable:no
Temperature readable:no
Sensor design:bimetal
Max. Contact voltage:24 V
Max. contact load:1 A
Explosion-proof:no
Temperature controller class:I

Characteristics

OperationTurn
Class of temperature controllerI
Sensor/sensor designBimetal
Temperature can be readNo
HABRTBSB-001.202 AP 24V opener
ManufacturerAlre-It
HANMA011700
GTIN4050528049766
Width78.3 mm
Explosion-proofNo
Height83.4 mm
Mounting typeSurface-mounted
RAL number9010
IP protection)IP30
Depth25.5 mm
