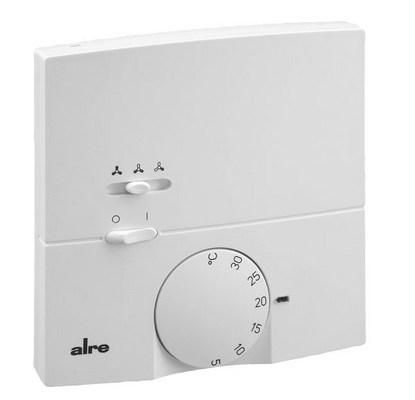

Alre-It MA200202 KTBSB-112.070 AP Single room climate controller B3000

In stock
SKU: 706401
€87.43
Into a basketIn the basketGo

Overview

Heating or cooling climate controller for fan coil units, air distribution systems or partial air conditioning systems with heating/cooling switching and neutral zone in a 4-pipe system for hotels, residential and business premises. The device has a changeover contact with neutral zone and 2x auxiliary outputs on/off. The setting range can be limited mechanically under the button with the setting flags. Surface/wall mounting or using an adapter plate on a flush-mounted box.

PropertyValue
Type of power supply:230 V AC
Mounting type:Surface-mounted
Protection class (IP):IP30
RAL number:9010
Height:110.7 mm
Width:110 mm
Depth:26 mm
Heating:yes
Number of heating outputs:1
Number of outputs Cooling:1
Operation:Rotary
Sensor external:no
Thermal feedback:parallel
Control characteristics:P
Difference value:1 K
Difference adjustable:no
Temperature readable:no
Sensor design:Bimetal
Max. voltage of contacts:230 V
Max. Contact load:6 A
Explosion-proof:no
Temperature controller class:I

Characteristics

OperationTurn
Class of temperature controllerI
Sensor/sensor designBimetal
Temperature can be readNo
HABKTBSB-112.070 AP
ManufacturerAlre-It
HANMA200202
GTIN4050528049902
Width110 mm
Explosion-proofNo
Height110.7 mm
Mounting typeSurface-mounted
RAL number9010
IP protection)IP30
Depth26 mm
