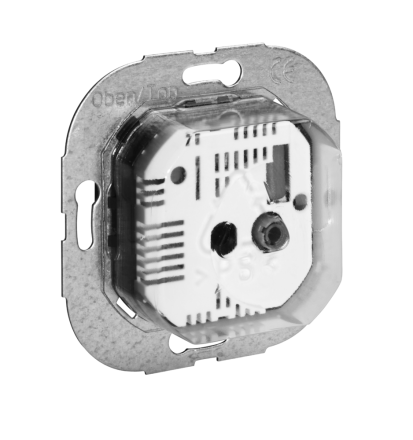

Alre-It UA010017 FTR101.000#00 5-30°C opener UP room temperature controller

In stock
SKU: 706255
€42.02
Into a basketIn the basketGo

Overview

Electromechanical flush-mounted room temperature controller for controlling or monitoring temperatures in offices, living rooms and hotels. In conjunction with the corresponding cover set, it fits into all common switch programs. Matching cover set no. JZ-001.xxx. Suitable for all types of heating. The thermal feedback achieves a very precise switching difference. The setting range can be changed using the range restriction located under the setting knob. The color of the lower part is anthracite and the color of the upper part corresponds to the selected cover set.

PropertyValue
Type of power supply:230 V AC
Mounting type:Flush-mounted
Protection class (IP):IP30
Height:71 mm
Width:71 mm
Depth:42.5 mm
Heating:yes
Number of heating outputs:1
Operation:Rotary
Color:anthracite
External sensor:no
Thermal feedback:parallel
Control characteristic:P
Difference value:0.5 K
Difference adjustable:no
Temperature readable:no
Sensor design:Bimetal
Max. voltage of the contacts:230 V
Max. Contact load:10 A
Explosion-proof:no
Temperature controller class:I

Characteristics

OperationTurn
Class of temperature controllerI
Sensor/sensor designBimetal
Temperature can be readNo
HABFTR101.000#00 5-30°C Opener
ManufacturerAlre-It
HANUA010017
GTIN4050528057792
Width71 mm
Explosion-proofNo
Height71 mm
Mounting typeFlush-mounted
IP protection)IP30
Depth42.5 mm
