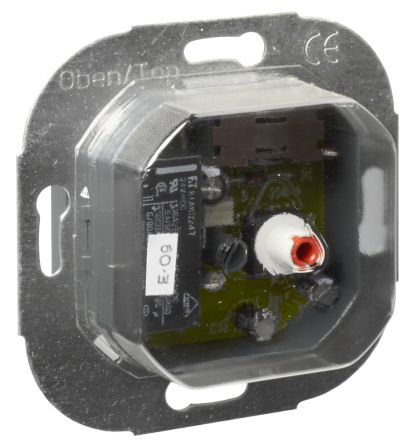

Alre-It UA030119 FETR 101.715#00 UP with remote sensor floor temperature controller

In stock
SKU: 706296
€123.57
Into a basketIn the basketGo

Overview

This electronic two-point controller was specially developed for controlling electric (max. 3680W) or hot water heaters/additional heaters for floors and other surface temperature control systems. Remote sensor HF-8/4-K2 (4m) included in delivery. If the sensor breaks or shorts, the heating is switched off. The temperature reduction input can be used to regulate the temperature to a temperature that is approx. 5 K lower (night-time reduction). In combination with the corresponding cover set JZ-005.xxx, it fits in all common switch programs.

PropertyValue
Type of power supply:230 V AC
Mounting type:Flush-mounted
Protection class (IP):IP30
Height:71 mm
Width:71 mm
Depth:42.5 mm
Heating:yes
Number of heating outputs:1
Operation:Rotary
Color:anthracite
External sensor:yes
Thermal feedback:without
Control characteristic:P
Difference value:1 K
Difference adjustable:no
Temperature readable:no
Sensor design:Resistance sensor
Max. voltage of the contacts:230 V
Max. Contact load:16 A
Explosion-proof:no
Temperature controller class:I

Characteristics

OperationTurn
Class of temperature controllerI
Sensor/sensor designResistance sensor
Temperature can be readNo
HABFETR 101.715#00 UP with remote sensor
ManufacturerAlre-It
HANUA030119
GTIN4050528058010
Width71 mm
Explosion-proofNo
Height71 mm
Mounting typeFlush-mounted
IP protection)IP30
Depth42.5 mm
