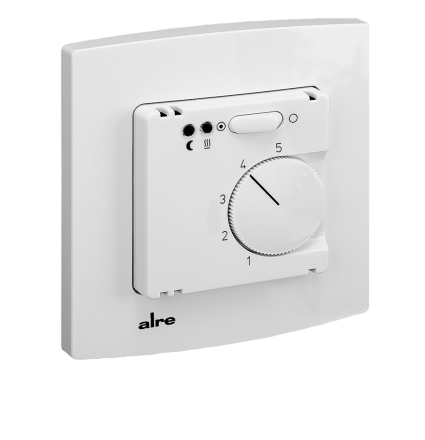

Alre-It UN030109 FETR 101.715#21 cpl. 50x50 incl. sensor UP floor temperature controller

In stock
SKU: 706298
€138.07
Into a basketIn the basketGo

Overview

This electronic two-point controller was specially developed for controlling electric (max. 3680W) or hot water heaters/additional heaters for floors and other surface temperature control systems. Remote sensor HF-8/4-K2 (4m) included in delivery. If the sensor breaks or shorts, the heating is switched off. The temperature reduction input can be used to regulate to a temperature approx. 5 K lower (night-time reduction).

PropertyValue
Type of power supply:230 V AC
Mounting type:Flush-mounted
Protection class (IP):IP30
RAL number:9010
Height:85 mm
Width:81 mm
Depth:42.4 mm
Heating:yes
Number of heating outputs:1
Operation:Rotary
External sensor:yes
Thermal feedback:without
Control characteristic:P
Difference value:1 K
Difference adjustable:no
Temperature readable:no
Sensor design:Resistance sensor
Max. voltage of the contacts:230 V
Max. Contact load:16 A
Explosion-proof:no
Temperature controller class:I

Characteristics

OperationTurn
Class of temperature controllerI
Sensor/sensor designResistance sensor
Temperature can be readNo
HABFETR 101.715#21 cpl. 50x50 incl. sensor
ManufacturerAlre-It
HANUN030109
GTIN4050528061379
Width81 mm
Explosion-proofNo
Height85 mm
Mounting typeFlush-mounted
RAL number9010
IP protection)IP30
Depth42.4 mm
