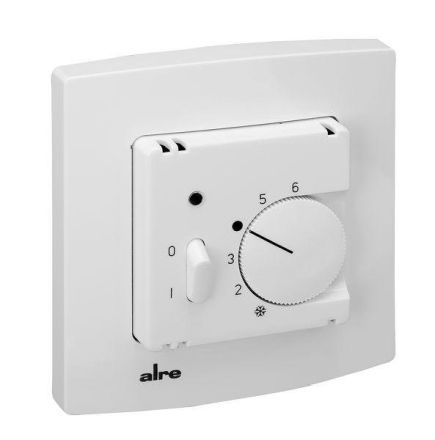

Alre-It UN110109 RTERU-010.715#21 electronic UP floor temperature controller

In stock
SKU: 879708
€86.62
Into a basketIn the basketGo

Overview

This electronic two-point controller was specially developed for controlling electric or hot water heaters/additional heaters for floors and other surface temperature control systems. Remote sensor HF-8/4-K2 (4m) included in delivery. If the sensor breaks or shorts, the heating is switched off. The temperature can be set to a temperature approx. 5 K lower via the temperature reduction input (night-time reduction). Complete device with cover and alre frame.

PropertyValue
Type of power supply:230 V AC
Mounting type:Flush-mounted
Protection class (IP):IP30
RAL number:9010
Height:83 mm
Width:79 mm
Depth:39 mm
Heating:yes
Number of heating outputs:1
Operation:Rotary
External sensor:yes
Control characteristics:P
Difference value:1.5 K
Difference adjustable:no
Sensor/probe design:Resistance sensor
Max. voltage of contacts:230 V
Max. contact load:10 A
Explosion-proof:no
Temperature controller class:I

Characteristics

OperationTurn
Class of temperature controllerI
Sensor/sensor designResistance sensor
HABRTERU-010.715#21 electronic UP
ManufacturerAlre-It
HANUN110109
GTIN4050528077059
Width79 mm
Explosion-proofNo
Height83 mm
Mounting typeFlush-mounted
RAL number9010
IP protection)IP30
Depth39 mm
Alre-It UN110109 RTERU-010.715#21 electronic UP floor temperature controller
Alre-It UN110109 RTERU-010.715#21 electronic UP floor temperature controller
€86.62
Into a basketIn the basketGo
