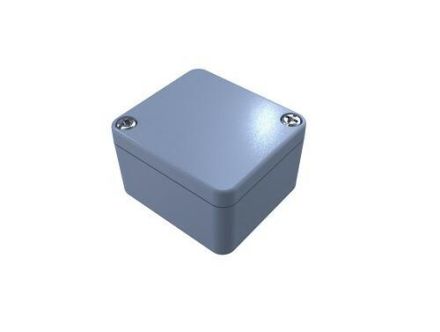

Bernstein 1020000000 GEH.CA-020 Aluminium housing

In stock
SKU: 1057148
€16.19
Into a basketIn the basketGo

Overview

Empty housing for high mechanical load capacity. Protection class IP66/IP67 according to DIN EN 60529. Corrosion and impact resistant thanks to high-quality powder coating. Grounding screws in the base and cover for holding protective conductors. Material: die-cast aluminum. Seal: foamed PUR seal. Cover screws: stainless steel, captive, combination Phillips head. Temperature range: -30°C to +80°C.

PropertyValue
Protection class (IP):IP67
Impact resistance:IK08
Protection class:I
Width:45 mm
Housing material:Aluminum
Weight:0.07
Weight unit:KG
Commodity statistical number:85365011
Mounting type:other
Height:30 mm
Depth:50 mm
RAL number:7001
Surface:powder-coated
Mounting option:yes
Color:gray
Type of cover:lid
Type of door:without
Material thickness of housing:3 mm
Material thickness of door/lid:2 mm
Cover design:closed
Protection class (NEMA):other

Characteristics

HABGEH.CA-020
ManufacturerBernstein
HAN1020000000
GTIN4024337000713
Cultivation optionYes
Type of coverLid
Type of doorWithout
Cover designClosed
Width45 mm
ColorGray
Weight0,07
Weight unit kg
Height30 mm
Housing material thickness3 mm
Material thickness door/lid2 mm
Mounting typeOther
SurfacePowder coated
RAL number7001
Impact resistanceIK08
IP protection)IP67
Protection class (NEMA)Other
Protection classI
Statistical commodity code85365011
Depth50 mm
Housing materialAluminum
Bernstein 1020000000 GEH.CA-020 Aluminium housing
Bernstein 1020000000 GEH.CA-020 Aluminium housing
€16.19
Into a basketIn the basketGo
