Bernstein 1060000000 GEH.CA-060 Alu

In stock
SKU: 1059502
€21.56
Into a basketIn the basketGo

Overview

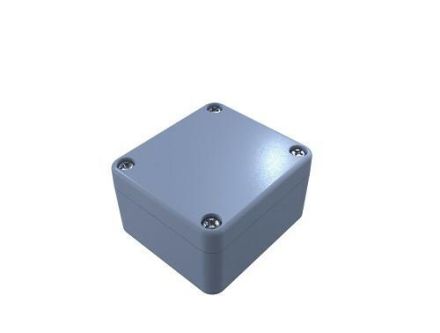

Empty housing for high mechanical load capacity. Protection class IP66/IP67 according to DIN EN 60529. Corrosion and impact resistant thanks to high-quality powder coating. Grounding screws in the base and cover for holding protective conductors. Material: die-cast aluminum. Seal: foamed PUR seal. Cover screws: stainless steel, captive, combination Phillips head. Temperature range: -30°C to +80°C.

PropertyValue
Protection class (IP):IP67
Impact resistance:IK09
Protection class:I
Width:64 mm
Housing material:Aluminum
Weight:0.16
Weight unit:KG
Commodity statistical number:85365011
Mounting type:other
Height:36 mm
Depth:58 mm
RAL number:7001
Surface:powder-coated
Mounting option:yes
Color:gray
Type of cover:lid
Type of door:without
Material thickness of housing:3.5 mm
Material thickness of door/lid:3 mm
Cover design:closed
Protection class (NEMA):other

Characteristics

ManufacturerBernstein
HAN1060000000
GTIN4024337000720
Cultivation optionYes
Type of coverLid
Type of doorWithout
Cover designClosed
Width64 mm
ColorGray
Weight0,16
Weight unit kg
Height36 mm
Housing material thickness3.5 mm
Material thickness door/lid3 mm
Mounting typeOther
SurfacePowder coated
RAL number7001
Impact resistanceIK09
IP protection)IP67
Protection class (NEMA)Other
Protection classI
Statistical commodity code85365011
Depth58 mm
Housing materialAluminum
Bernstein 1060000000 GEH.CA-060 Alu
