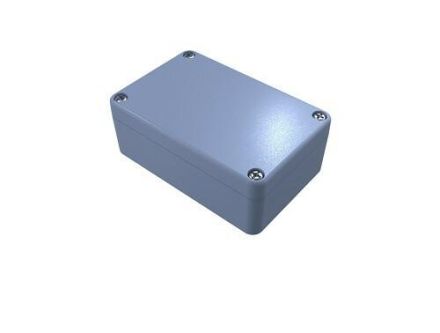

Bernstein 1080000000 GEH.CA-080 aluminum housing

In stock
SKU: 1057157
€25
Into a basketIn the basketGo

Overview

Empty housing for high mechanical load capacity. Protection class IP66/IP67 according to DIN EN 60529. Corrosion and impact resistant thanks to high-quality powder coating. Grounding screws in the base and cover for holding protective conductors. Material: die-cast aluminum. Seal: foamed PUR seal. Cover screws: stainless steel, captive, combination Phillips head. Temperature range: -30°C to +80°C.

PropertyValue
Protection class (IP):IP67
Impact resistance:IK09
Protection class:I
Width:64 mm
Housing material:Aluminum
Weight:0.22
Weight unit:KG
Commodity statistical number:85365011
Mounting type:other
Height:36 mm
Depth:98 mm
RAL number:7001
Surface:powder-coated
Mounting option:yes
Color:gray
Type of cover:lid
Type of door:without
Material thickness of housing:3.5 mm
Material thickness of door/lid:3 mm
Cover design:closed
Protection class (NEMA):other

Characteristics

HABGEH.CA-080
ManufacturerBernstein
HAN1080000000
GTIN4024337000737
Cultivation optionYes
Type of coverLid
Type of doorWithout
Cover designClosed
Width64 mm
ColorGray
Weight0,22
Weight unit kg
Height36 mm
Housing material thickness3.5 mm
Material thickness door/lid3 mm
Mounting typeOther
SurfacePowder coated
RAL number7001
Impact resistanceIK09
IP protection)IP67
Protection class (NEMA)Other
Protection classI
Statistical commodity code85365011
Depth98 mm
Housing materialAluminum
