Bernstein 1270004000 GEH.CA-270 C_UL_US

In stock
SKU: 1057895
€95.50
Into a basketIn the basketGo

Overview

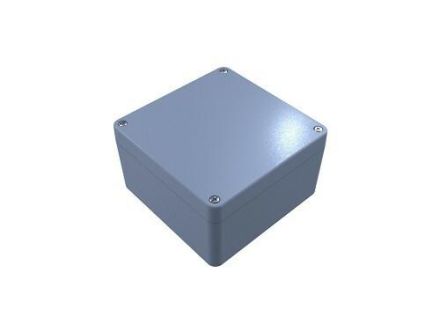

Empty housing made of aluminum with cULus label. Protection class IP66/IP67 according to DIN EN 60529. Corrosion and impact resistant thanks to high-quality powder coating. Grounding screws in the base and cover for holding protective conductors. Fastening bars for holding and fastening built-in components (support rail, mounting plate, etc.). Material: die-cast aluminum. Seal: foamed PUR seal. Cover screws: stainless steel, captive, combination Phillips head. Temperature range: -30°C to +80°C.

PropertyValue
Protection class (IP):IP67
Impact resistance:IK09
Protection class:I
Width:160 mm
Housing material:Aluminum
Weight:1.41
Weight unit:KG
Mounting type:other
Height:90 mm
Depth:160 mm
RAL number:7001
Surface:powder-coated
Mounting option:yes
Color:gray
Type of cover:lid
Type of door:without
Material thickness of housing:4.1 mm
Material thickness of door/lid:3.7 mm
Cover design:closed
Protection class (NEMA):other

Characteristics

ManufacturerBernstein
HAN1270004000
GTIN4024337092206
Cultivation optionYes
Type of coverLid
Type of doorWithout
Cover designClosed
Width160 mm
ColorGray
Weight1,41
Weight unit kg
Height90 mm
Housing material thickness4.1 mm
Material thickness door/lid3.7 mm
Mounting typeOther
SurfacePowder coated
RAL number7001
Impact resistanceIK09
IP protection)IP67
Protection class (NEMA)Other
Protection classI
Depth160 mm
Housing materialAluminum
