Bernstein 1480008000 1480008000 GEH.CA-480 HF P

In stock
SKU: 1060261
€1,230.34
Into a basketIn the basketGo

Overview

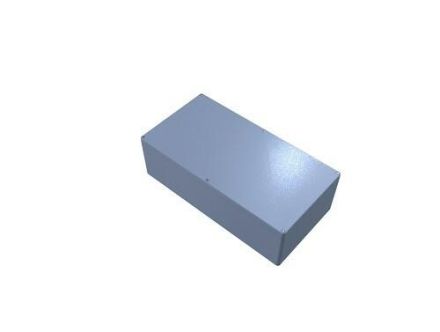

Empty housing for high mechanical load capacity. IP65 according to DIN EN 60529. Corrosion and impact resistant thanks to high-quality powder coating. Grounding screws in the base and cover for holding protective conductors. Fastening bars for holding and fastening built-in components (support rail, mounting plate, etc.). Material: die-cast aluminum. HF seal. Cover screws: stainless steel, captive, combination Phillips head. Temperature range: -30°C to +80°C.

PropertyValue
Protection class (IP):IP65
Impact resistance:IK09
Protection class:I
Width:310 mm
Housing material:Aluminum
Weight:10.84
Weight unit:KG
Commodity statistical number:85365011
Mounting type:other
Height:180 mm
Depth:600 mm
RAL number:7001
Surface:powder-coated
Mounting option:yes
Color:gray
Type of cover:lid
Type of door:without
Material thickness of housing:4 mm
Material thickness of door/lid:4 mm
Cover design:closed
Protection class (NEMA):other

Characteristics

ManufacturerBernstein
HAN1480008000
GTIN4024337064982
Cultivation optionYes
Type of coverLid
Type of doorWithout
Cover designClosed
Width310 mm
ColorGray
Weight10,84
Weight unit kg
Height180 mm
Housing material thickness4 mm
Material thickness door/lid4 mm
Mounting typeOther
SurfacePowder coated
RAL number7001
Impact resistanceIK09
IP protection)IP65
Protection class (NEMA)Other
Protection classI
Statistical commodity code85365011
Depth600 mm
Housing materialAluminum
Bernstein 1480008000 1480008000 GEH.CA-480 HF P
Bernstein 1480008000 1480008000 GEH.CA-480 HF P
€1,230.34
