Bernstein 3540001000 GEH.CT-542 Z ABS

In stock
SKU: 1059215
€19.85
Into a basketIn the basketGo

Overview

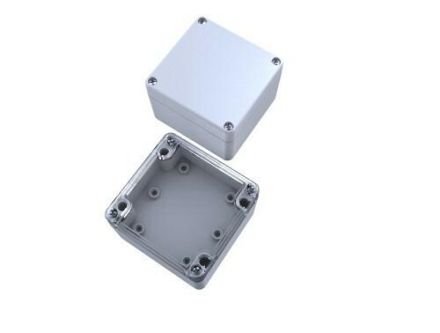

Empty housing, protection class IP66 according to DIN EN 60529. Low weight, good insulation properties. Fastening lugs for holding and fastening built-in components (support rail, mounting plate, etc.). Material: ABS. Seal: foamed PUR seal. Cover screws: stainless steel, captive, combination Phillips head. Temperature range: -40°C to +80°C.

PropertyValue
Protection class (IP):IP66
Impact resistance:IK07
Protection class:II
Width:80 mm
Housing material:Plastic
Weight:0.12
Weight unit:KG
Commodity statistical number:85365011
Mounting type:other
Height:55 mm
Depth:82 mm
RAL number:7035
Mounting option:yes
Color:gray
Type of cover:lid
Type of door:without
Material thickness of housing:3.5 mm
Material thickness of door/lid:3.5 mm
Cover design:closed
Protection class (NEMA):other
Brief description:ABS housing type CT-542 with screw cap, IP66, RAL 7035, external dimensions: 82 x 80 x 55 mm

Characteristics

ManufacturerBernstein
HAN3540001000
GTIN4024337001987
Cultivation optionYes
Type of coverLid
Type of doorWithout
Cover designClosed
Width80 mm
ColorGray
Weight0,12
Weight unit kg
Height55 mm
Short descriptionABS housing type CT-542 with screw cap, IP66, RAL 7035, external dimensions: 82 x 80 x 55 mm
Housing material thickness3.5 mm
Material thickness door/lid3.5 mm
Mounting typeOther
RAL number7035
Impact resistanceIK07
IP protection)IP66
Protection class (NEMA)Other
Protection classII
Statistical commodity code85365011
Depth82 mm
Housing materialPlastic
