Bernstein 3780000000 GEH.CT-782 ABS

In stock
SKU: 1058038
€41.64
Into a basketIn the basketGo

Overview

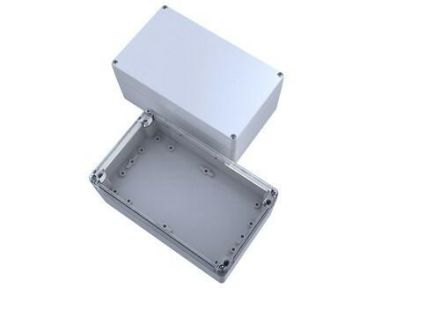

Empty housing, protection class IP66 according to DIN EN 60529. Low weight, good insulation properties. Fastening lugs for holding and fastening built-in components (support rail, mounting plate, etc.). Material: ABS. Seal: foamed PUR seal. Cover screws: quick-release principle, stainless steel, captive, combination Phillips head. Temperature range: -40°C to +80°C.

PropertyValue
Protection class (IP):IP66
Impact resistance:IK07
Protection class:II
Width:120 mm
Housing material:Plastic
Weight:0.36
Weight unit:KG
Commodity statistical number:85365011
Mounting type:other
Height:90 mm
Depth:200 mm
RAL number:7035
Mounting option:yes
Color:gray
Type of cover:lid
Type of door:without
Material thickness of housing:3.5 mm
Material thickness of door/lid:2.5 mm
Cover design:closed
Protection class (NEMA):other

Characteristics

ManufacturerBernstein
HAN3780000000
GTIN4024337002564
Cultivation optionYes
Type of coverLid
Type of doorWithout
Cover designClosed
Width120 mm
ColorGray
Weight0,36
Weight unit kg
Height90 mm
Housing material thickness3.5 mm
Material thickness door/lid2.5 mm
Mounting typeOther
RAL number7035
Impact resistanceIK07
IP protection)IP66
Protection class (NEMA)Other
Protection classII
Statistical commodity code85365011
Depth200 mm
Housing materialPlastic
