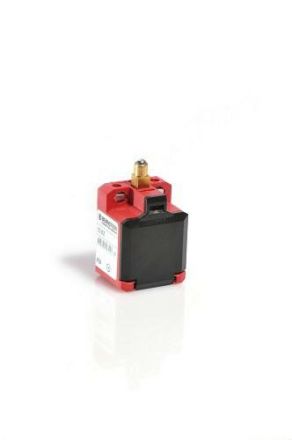

Bernstein 6008851006 C2-SE2 ISO

In stock

SKU: 1058591

Price on request

€32.12

€0

Overview

Smallest switch for safety applications, two-channel safety monitoring possible, with captive snap-on cover, also suitable for front mounting, installation advantage: snap-on cover can be unlocked with a screwdriver - easy cover closure, transparent cover protects the control area during installation and facilitates adjustment.

Property	Value
Protection class (IP):	IP20
Housing material:	Plastic
Weight:	0.02
Weight unit:	KG
Statistical commodity number:	85365011
Switching function:	Snap-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Design of the interface for safety-related communication:	without
Design of the electrical Connection:	other
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	special design
Design of the actuating element:	domed plunger
Design of the interface:	without
Width of the sensor:	26 mm
Height of the sensor:	21 mm
Length of the sensor:	44 mm
Ambient temperature during operation:	-30 - 80 °C
Number of contacts as normally open:	2
