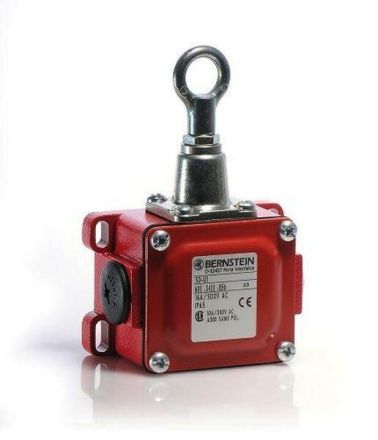

Bernstein 6011411854 SD-U1 cable pull

In stock

SKU: 1057782

Price on request

€97.18

€0

Overview

Due to normative requirements, the standard rope pull switches can only be used as control devices. Products are available in metal and insulated housings. They are operated manually by pulling on the attached rope. The basic design of the standard rope pull switches is based on that of the position switches.

Property	Value
Protection class (IP):	IP43
Housing material:	Metal
Weight:	0.29
Weight unit:	KG
Statistical commodity number:	85365011
Ambient temperature during operation:	-30 - 80 °C
Switching function:	Slow-action switching element
Rated operating current Ie at AC-15, 230 V:	10 A
Coating Housing:	powder-coated
Design of the interface for safety-related communication:	without
Design of the electrical connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Number of safety-related auxiliary contacts:	1
Design of the actuating element:	other
Design of the interface:	without
Width of the sensor:	82 mm
Height of the sensor:	44 mm
Length of the sensor:	112.5 mm
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Alignment of the actuating element:	other
