Overview

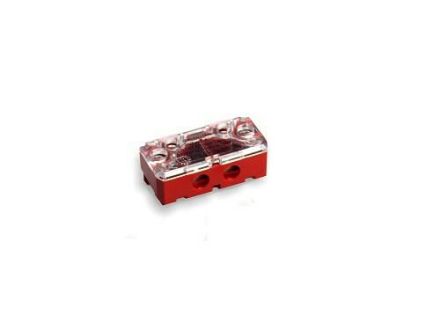

The BERNSTEIN door contacts of the SEL series have been a fixture in elevator technology for years. Whether for initial equipment for major customers or in the spare parts sector - they can be found all over the world. Due to the spring-loaded design of the contacts, the contact surfaces are mechanically moved each time they are actuated, which causes a cleaning effect by the actuator. Dirt, dust and any oxide layers are rubbed off - the electrical contact is reliably established.

Property	Value
Protection class (IP):	IP20
Housing material:	Plastic
Weight:	0.02
Weight unit:	KG
Ambient temperature during operation:	-30 - 70 °C
Rated operating current Ie at AC-15, 230 V:	2 A
Rated operating current Ie at DC-13, 230 V:	2 A
Suitable for Safety functions:	yes
Design of the switching element:	slow-action switching element
Design of the interface for safety-related communication:	without
Design of the electrical connection:	other
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Forced opening:	yes
Number of safety-related auxiliary contacts:	1
Design of the interface:	without
Width of the sensor:	24.5 mm
Height of the sensor:	16 mm
Length of the sensor:	50 mm
Number of contacts as normally closed:	1
