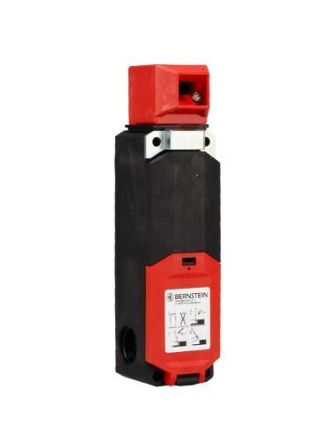

Bernstein 6018169062 SLK-M-UC-81-R0-A0-

Bernstein 6018169062 SLK-M-UC-81-R0-A0-

In stock

SKU: 1057759

Price on request

€243.71

€0

Overview

Safety interlock with door monitoring (type 2, DIN EN ISO 14119) for protecting machines that continue to run after the machine has stopped. Locking force FZh = 1500 Newtons, number of door monitoring contacts: 3 break contacts, number of interlock monitoring contacts: 1 break contact, control voltage of the coil 24 V, interlocking principle magnet (open-circuit principle), cable entry 3 x M20 x 1.5. Actuators must be ordered separately.

Property	Value
Protection class (IP):	IP67
Housing material:	Plastic
Weight:	0.36
Weight unit:	KG
Statistical commodity number:	85365011
Rated operating current Ie at AC-15, 230 V:	2.5 A
Suitable for safety functions:	yes
Design of the interface for safety-related communication:	without
Design of the electrical Connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Special design
Number of safety-related auxiliary contacts:	4
Interface design:	without
Rated control supply voltage Us magnetic drive at DC:	24 V
Width of the sensor:	42.5 mm
Height of the sensor:	45 mm
Length of the sensor:	184 mm
Ambient temperature during operation:	-25 - 70 °C
Locking force:	1500 N
Number of contacts as normally closed:	4
Design of the switching element:	Slow action switching element
Housing coating:	Other
Protection class (NEMA):	Other
Type of locking:	Working current principle
