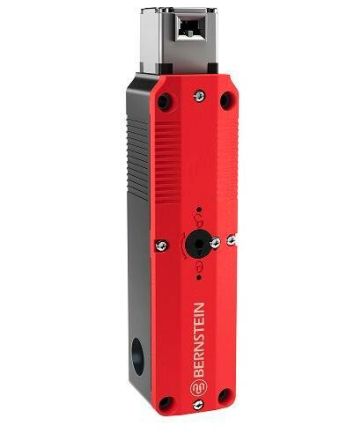

Amber 6018200002 SLC-M-024-11/11-R4

Amber 6018200002 SLC-M-024-11/11-R4

In stock

SKU: 1058801

Price on request

€192.53

€0

Overview

Safety interlock with door monitoring (type 2, DIN EN ISO 14119) for protecting machines that continue to run after the machine has stopped. Locking force FZh = 1500 Newtons, number of door monitoring contacts: 1 opener/1 closer, number of interlock monitoring contacts: 1 opener/1 closer, control voltage of the coil 24 V, with integrated auxiliary release, interlocking principle magnet (working current principle), cable entry 3 x M20 x 1.5. Actuators must be ordered separately.

Property	Value
Protection class (IP):	IP67
Housing material:	Plastic
Weight:	0.48
Weight unit:	KG
Rated operating current Ie at AC-15, 230 V:	1.5 A
Rated operating current Ie at DC-13, 230 V:	0.11 A
Suitable for safety functions:	yes
Version of the Switching element:	Slow-action switching element
Design of the interface for safety-related communication:	without
Design of the electrical connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	other
Number of safety-related auxiliary contacts:	2
Design of the interface:	without
Rated control supply voltage Us magnetic drive at AC 50 Hz:	24 V
Rated control supply voltage Us magnetic drive at DC:	24 V
Rated operating current Ie at DC-13, 24 V:	1.5 A
Width of the sensor:	42 mm
Height of the sensor:	44 mm
Length of the sensor:	192 mm
Ambient temperature during operation:	-25 - 55 °C
Closing force:	1500 N
Number of contacts as normally closed:	2
Number of contacts as normally open:	2
Coating Housing:	other
With auxiliary release:	yes
Type of locking:	Working current principle
