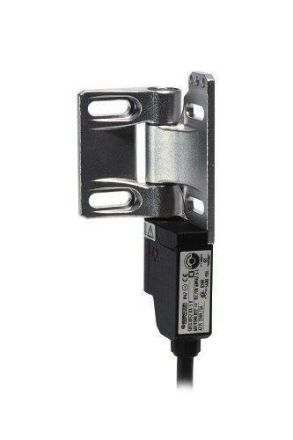

Bernstein 6019390022 SHS3-U15Z-KA 5 R safety switch hinge

The SHS3 hinge switch offers a lot of flexibility in terms of installation, connection and adjustment. Since the hinge switch is integrated directly into the protective device, it offers increased protection against manipulation. The SHS3 can be used on all doors, hoods and flaps and can be attached to the right or left. The switching point of the safe hinge switch can be freely adjusted over the entire swivel range from 0° to 270°. An integrated fine adjustment screw enables the switching point to be adjusted by +/- 1.5°. Thanks to the replacement kit supplied, the switching point setting can be repeated as often as required if the system is expanded. Since an empty hinge with an identical design is also available, conventional load hinges are not required. • Safe, complete solution for rotating protective devices with hinges, includes hinge and safety switch • Thanks to protection class IP67 for use in areas with strict hygiene regulations or with heavy contamination • High protection against manipulation, as it is directly connected to the protective device • Load capacities of up to 1800N • Switching point can be freely set from 0° to 270° and changed later • Easy to attach, even to profiles • Easy adjustment using an integrated fine adjustment screw • Systems can be attached on the right and left • Low maintenance • Stainless steel hinge with integrated safety switch in a plastic housing
