Amber 6021173514 6021173514 GC-SU1Z HLIW 180GR

Amber 6021173514 6021173514 GC-SU1Z HLIW 180GR

In stock

SKU: 1059870

Price on request

€69.37

€0

Overview

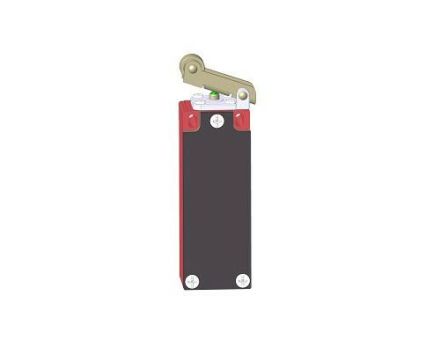

Metal-encapsulated limit switch which, thanks to its compact design, is suitable for almost any use in the field of safety applications and position detection. The switch offers various installation advantages: e.g. screw connections with self-lifting clamping disks, captive cover screws, switching system can be easily replaced thanks to snap-in holder. Versions with customer-specific cables and connector plugs are also available as an option.

Property	Value
Protection class (IP):	IP65
Housing material:	metal
Weight:	0.16
Weight unit:	KG
Statistical commodity number:	85365011
Switching function:	Snap-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Suitable for safety functions:	yes
Interface design for safety-related Communication:	without
Design of the electrical connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Forced opening:	yes
Number of safety-related auxiliary contacts:	1
Design of the actuating element:	roller lever
Design of the interface:	without
Width of the sensor:	36 mm
Height of the Sensors:	32.5 mm
Length of the sensor:	99.5 mm
Ambient temperature during operation:	-30 - 80 °C
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Alignment of the actuating element:	other
Housing coating:	powder-coated
