Bernstein 6022500416 6022500416 GC-U15Z O.BETG.

Bernstein 6022500416 6022500416 GC-U15Z O.BETG.

In stock

SKU: 1060070

Price on request

€69.09

€0

Overview

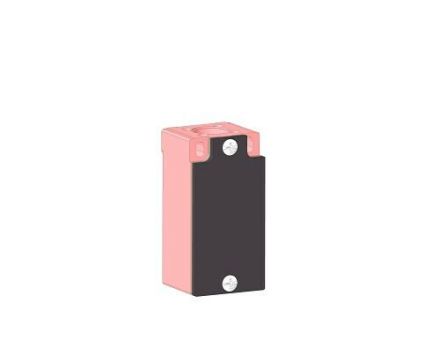

Metal-encapsulated limit switch which, thanks to its compact design, is suitable for almost any use in the field of safety applications and position detection. The switch offers various installation advantages: e.g. screw connections with self-lifting clamping disks, captive cover screws, switching system can be easily replaced thanks to snap-in holder. Versions with customer-specific cables and connector plugs are also available as an option.

Property	Value
Protection class (IP):	IP20
Housing material:	metal
Weight:	0.15
Weight unit:	KG
Statistical commodity number:	85365011
Switching function:	Slow-action switching element
Suitable for safety functions:	yes
Design of the interface for safety-related communication:	without
Design of the electrical connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Forced opening:	yes
Number of safety-related auxiliary contacts:	2
Design of the actuating element:	without
Design of the interface:	without
Width of the sensor:	36 mm
Height of the sensor:	33 mm
Length of the sensor:	96 mm
Ambient temperature during operation:	-30 - 80 °C
Number of contacts as normally closed:	2
Number of contacts as normally open:	1
Alignment of the actuating element:	other
Rated operating current Ie at AC-15, 230 V:	1.5 A
Housing coating:	powder-coated
