Bernstein 6023000008 6023000008 M49-E2 IW Z

In stock

SKU: 1059963

Price on request

€35.29

€0

Overview

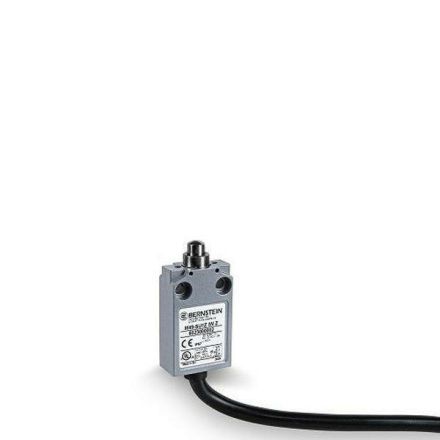

With an extremely flat design (16 mm) and full IP67 protection, the M49 metal switches are perfect for position queries and end position shutdown in safety applications.

Property	Value
Protection class (IP):	IP67
Housing material:	metal
Weight:	0.18
Weight unit:	KG
Switching function:	Slow-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Suitable for safety functions:	yes
Housing coating:	powder-coated
Interface design for safety-related Communication:	without
Design of the electrical connection:	pre-assembled with cable
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cuboid
Design of the actuating element:	domed plunger
Design of the interface:	without
Rated operating current Ie at DC-13, 24 V:	2.8 A
Width of the sensor:	30 mm
Height of the sensor:	16 mm
Sensor length:	60.2 mm
Ambient temperature during operation:	-25 - 70 °C
Number of contacts as normally open:	2
Protection class (NEMA):	4X
