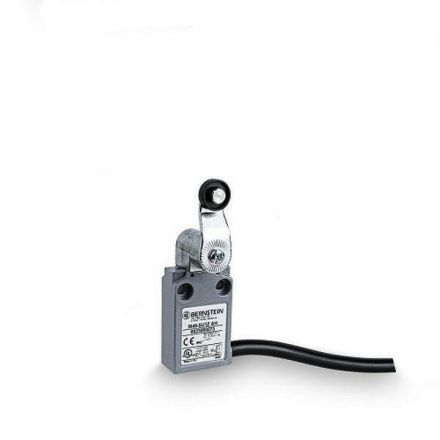

Amber 6023000073 6023000073 M49-SU1Z AH

In stock
SKU: 1060005
€45.85
Into a basketIn the basketGo

Overview

With an extremely flat design (16 mm) and full IP67 protection, the M49 metal switches are perfect for position queries and end position shutdown in safety applications.

PropertyValue
Protection class (IP):IP67
Housing material:metal
Weight:0.22
Weight unit:KG
Switching function:Snap-action switching element
Rated operating current Ie at AC-15, 230 V:3 A
Suitable for safety functions:yes
Housing coating:powder-coated
Interface design for safety-related Communication:without
Design of the electrical connection:pre-assembled with cable
Explosion protection category for gas:without
Explosion protection category for dust:without
Housing design:cuboid
Forced opening:yes
Number of safety-related auxiliary contacts:1
Design of the actuating element:swivel lever
Design of the interface:without
Rated operating current Ie at DC-13, 24 V:2.8 A
Sensor width:30 mm
Sensor height:29.32 mm
Sensor length:92 mm
Ambient temperature during operation:-25 - 70 °C
Number of contacts as normally closed:1
Number of contacts as normally open:1
Protection class (NEMA):4X

Characteristics

ManufacturerBernstein
HAN6023000073
GTIN4024337101205
Number of contacts as normally open1
Number of contacts as opener1
Number of safety-related auxiliary contacts1
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementSwivel lever
Design of the electrical connectionPre-assembled with cable
Rated operating current Ie at AC-15, 230 V3 A
Rated operating current Ie at DC-13, 24 V2.8A
Housing coatingPowder coated
Width of the sensor30 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designCuboid
Weight0,22
Weight unit kg
Height of the sensor29.32 mm
Length of the sensor92 mm
Switching functionSnap action contact
IP protection)IP67
Protection class (NEMA)4X
Ambient temperature during operation-25 - 70 °C
Housing materialMetal
Forced openingYes
