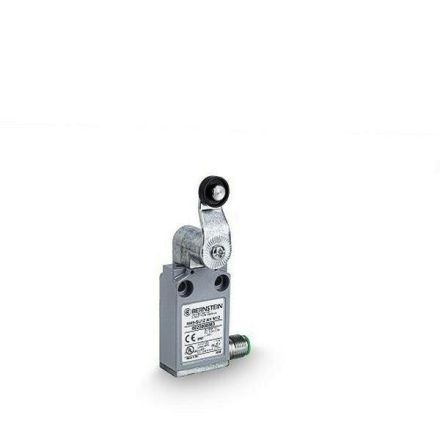

Bernstein 6023000089 6023000089 M49-E2 AH M12

In stock
SKU: 1060307
€55.38
Into a basketIn the basketGo

Overview

With an extremely flat design (16 mm) and full IP67 protection, the M49 metal switches are perfect for position queries and end position shutdown in safety applications.

PropertyValue
Protection class (IP):IP67
Housing material:metal
Weight:0.16
Weight unit:KG
Switching function:Slow-action switching element
Rated operating current Ie at AC-15, 230 V:3 A
Suitable for safety functions:yes
Housing coating:powder-coated
Interface design for safety-related Communication:without
Explosion protection category for gas:without
Explosion protection category for dust:without
Housing design:Cuboid
Design of the actuating element:Swivel lever
Design of the interface:without
Rated operating current Ie at DC-13, 24 V:2.8 A
Width of the sensor:30 mm
Height of the sensor:29.3 mm
Length of the sensor:95 mm
Ambient temperature during operation:-25 - 70 °C
Number of contacts as normally open:2
Protection class (NEMA):4X
Design of the electrical connection:Connector M12

Characteristics

ManufacturerBernstein
HAN6023000089
GTIN4024337101366
Number of contacts as normally open2
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementSwivel lever
Design of the electrical connectionConnector M12
Rated operating current Ie at AC-15, 230 V3 A
Rated operating current Ie at DC-13, 24 V2.8A
Housing coatingPowder coated
Width of the sensor30 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designCuboid
Weight0,16
Weight unit kg
Height of the sensor29.3 mm
Length of the sensor95 mm
Switching functionSlow-action switching element
IP protection)IP67
Protection class (NEMA)4X
Ambient temperature during operation-25 - 70 °C
Housing materialMetal
