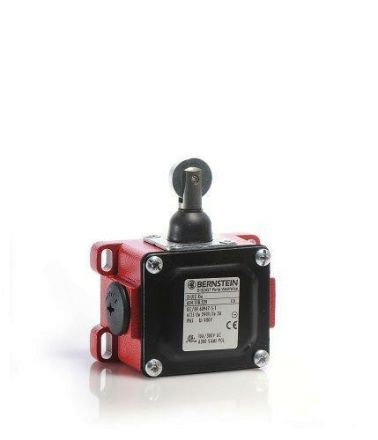

Bernstein 6041818741 D-A2Z RW C limit switch

Bernstein 6041818741 D-A2Z RW C limit switch

In stock

SKU: 1057081

Price on request

€112.93

€0

Overview

Metal-encapsulated limit switch which is particularly suitable for use in harsh environmental conditions due to its heavy encapsulation and the robust design of the actuator and switching systems. Protection class IP 65. Housing made of die-cast aluminum, cover made of aluminum sheet, with 2 cable entries for through-wiring, captive cover screws.

Property	Value
Protection class (IP):	IP65
Housing material:	metal
Weight:	0.29
Weight unit:	KG
Statistical commodity number:	85365080
Switching function:	Slow-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Suitable for safety functions:	yes
Interface design for safety-related Communication:	without
Design of the electrical connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	special design
Forced opening:	yes
Number of safety-related auxiliary contacts:	2
Design of the actuating element:	roller plunger
Design of the interface:	without
Width of the sensor:	82 mm
Height of the sensor:	44 mm
Length of the sensor:	96 mm
Ambient temperature during operation:	-30 - 80 °C
Number of contacts as normally closed:	2
Alignment of the actuating element:	Straight roller plunger
Housing coating:	powder-coated
