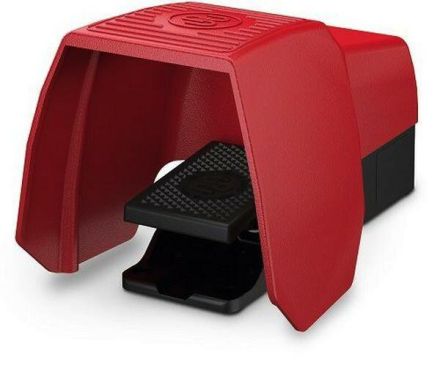

Bernstein 6061800436 F1-SU1Z LS22 UN

In stock
SKU: 1057637
€218.28
Into a basketIn the basketGo

Overview

Suitable for high demands in industrial applications. Existing mounting holes offer the option of screwing the foot switches to the surface. Each foot switch is equipped with four rubber feet to prevent slipping. The foot lever is made of thermoplastic. An accident protection cover made of die-cast aluminum completely shields the pedal from above and from the sides and, with its wide outreach, ensures high stability. Accidental actuation by falling objects from above or carelessness from the side is thus prevented. Due to its stability, the cover can withstand a drop weight of 20 kg from a height of 1 m. Foot switches with power contactors combine an auxiliary current switch with a main current switch. This means that a motor can be controlled without an additional control box, for example. The power contactor is attached directly to a standard rail in the cover housing.

PropertyValue
Protection class (IP):IP65
Width:156 mm
Weight:1.53
Weight unit:KG
Statistical commodity number:85365011
Colour:red
Suitable for safety functions:yes
Material:metal
Command type:On or off
With Protective cover:yes
Number of contacts as normally closed:1
Number of contacts as normally open:1
Number of switching positions:2
Rated operating current Ie at AC-15, 230 V:3 A
Height:145 mm
Depth:250 mm
Protection class (NEMA):other

Characteristics

ManufacturerBernstein
HAN6061800436
GTIN4024337014208
Number of contacts as normally open1
Number of contacts as opener1
Number of switching positions2
Rated operating current Ie at AC-15, 230 V3 A
Width156 mm
ColorRed
Suitable for security functionsYes
Weight1,53
Weight unit kg
Height145 mm
IP protection)IP65
Protection class (NEMA)Other
Statistical commodity code85365011
Depth250 mm
MaterialMetal
