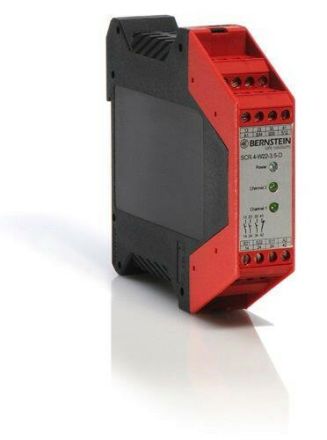

Bernstein 6075111009 SCR 4-W22-3.5-D

In stock

SKU: 1059226

Price on request

€234.11

€0

Overview

The SCR is an emergency stop and protective door safety relay in a 22.5 mm housing for one and two-channel applications up to Cat. 4 / Pl e, with automatic or manual start. No monitoring of the start button. It has 3 release paths (normally open) and 1 signal contact (normally closed). Connection via screw terminals. Switching voltage 230 V AC, or 24 V DC

Property	Value
Width:	22.5 mm
Weight:	0.22
Weight unit:	KG
Statistical commodity number:	85365011
Height:	114.5 mm
Depth:	99 mm
With UL approval:	yes
With start input:	yes
Number of outputs, safety-related, undelayed, contact-based:	3
Number of outputs, signaling function, undelayed, contact-based:	1
Rail mounting possible:	yes
Suitable for monitoring magnetic switches:	yes
Suitable for monitoring EMERGENCY STOP circuits:	yes
Suitable for monitoring position switches:	yes
Design:	Basic device
Design of the electrical connection:	Screw connection
Safety type according to IEC 61496-1:	without
Performance level according to EN ISO 13849-1:	Level e
Evaluation of the inputs:	single and dual channel
With TÜV approval:	yes
Off delay:	003 s
SIL according to IEC 61508:	4
Type of supply voltage:	AC/DC
Supply voltage at AC 50 Hz:	24 V
Supply voltage at AC 60 Hz:	24 V
Supply voltage at DC:	24 V
