Amber 6075689185 6075689185 SFW-M12A8/BW-2PU

In stock
SKU: 1059806
€33.56
Into a basketIn the basketGo

Overview

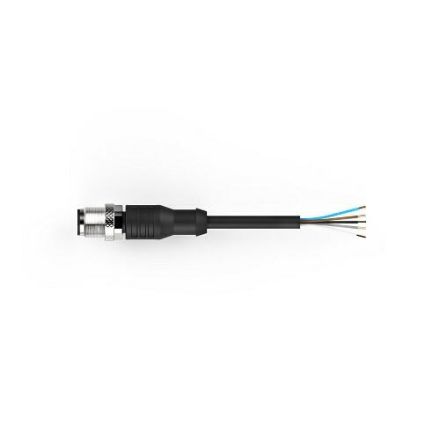

Connecting cable type SFW, M12 socket, number of poles: 8, cable length: 2 m, outer jacket PUR, color: black, socket orientation: straight, for connecting switches and sensors e.g. to terminal blocks

PropertyValue
Protection class (IP):IP68
Number of poles:8
Weight:0.1
Weight unit:KG
Halogen-free:yes
Cable type:multi-core
Rated voltage:30 V
Cable length:2 m
Permissible external cable temperature during assembly/handling:-30 - 90 °C
Permissible Cable external temperature after installation without vibration:-30 - 90 °C
Voltage resistance:5 mOhm
Contact coating material:Gold
Cable sheath material:Polyurethane (PUR)
Electrical connection design, housing side:free cable end
Electrical connection design, field side:M12
Cable feed arrangement, housing side:straight
Cable feed arrangement, field side:straight
Type of plug contact, field side:Female (socket)
Material of the contact body:CuSn
Cable sheath colour:black
Rated current In:2 A

Characteristics

Cable typeMulti-core
ManufacturerBernstein
HAN6075689185
GTIN4024337102608
Rated voltage30V
Rated current In2 A
Weight0,1
Weight unit kg
Halogen freeYes
Cable length2m
Number of poles8
IP protection)IP68
Amber 6075689185 6075689185 SFW-M12A8/BW-2PU
Amber 6075689185 6075689185 SFW-M12A8/BW-2PU
€33.56
Into a basketIn the basketGo
