Bernstein 6075989082 ATS-M12/4-M12/8 A

In stock
SKU: 1058563
€27.85
Into a basketIn the basketGo

Overview

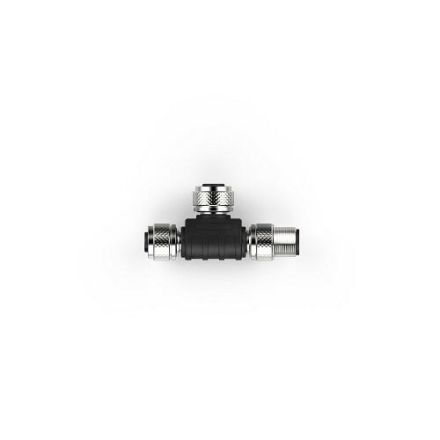

T-adapter for series connection of the contactless RFID safety sensors SRF. For convenient and quick connection using M12 connection cables. The T-adapter has an M12 8-pin socket for connecting the sensor and an M12 4-pin socket and a plug for connecting the M12 connection cable.

PropertyValue
Number of poles:4
Housing material:Plastic
Weight:0.1
Weight unit:KG
Design:T-adapter
Rated voltage:30 V
Contact design:male
Ambient temperature:-30 - 90 °C
Operating temperature:-30 - 90 °C
Flammability class of the insulating material according to UL 94:other
Material of the contact coating:gold
Pollution level:3
Protection class (IP), mounted:IP68
Rated current In:2 A
Material of the threaded ring:other

Characteristics

ManufacturerBernstein
HAN6075989082
GTIN4024337092015
VersionT-Adapter
Rated voltage30V
Rated current In2 A
Operating temperatur-30 - 90 °C
Flammability class of the insulating material according to UL 94Other
Weight0,1
Weight unit kg
Number of poles4
Ambient temperature-30 - 90 °C
Degree of contamination3
Housing materialPlastic
