Bernstein 6081000069 6081000069 IN73-40 AHK

Bernstein 6081000069 6081000069 IN73-40 AHK

In stock

SKU: 1059896

Price on request

€74.72

€0

Overview

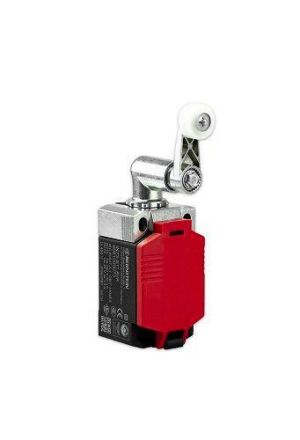

The IN73 are standard switches in accordance with DIN EN 50041. Due to their dimensions and the variety of contacts and actuators, the switches can be used in almost any industrial application for safe position monitoring. The metal actuator holder and the mounting level, which is also made of metal, make the switch particularly robust and durable.

Property	Value
Protection class (IP):	IP66/IP67
Housing material:	plastic
Weight:	0.2
Weight unit:	KG
Switching function:	Slow-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Suitable for safety functions:	yes
Design of the interface for safety-related communication:	without
Design of the electrical Connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Positive opening:	yes
Number of safety-related auxiliary contacts:	4
Design of the actuating element:	Swivel lever
Design of the interface:	without
Rated operating current Ie at DC-13, 24 V:	1.5 A
Width of the Sensors:	42.5 mm
Height of the sensor:	63.5 mm
Length of the sensor:	130.5 mm
Ambient temperature during operation:	-30 - 75 °C
Number of contacts as normally closed:	4
Protection class (NEMA):	4X
