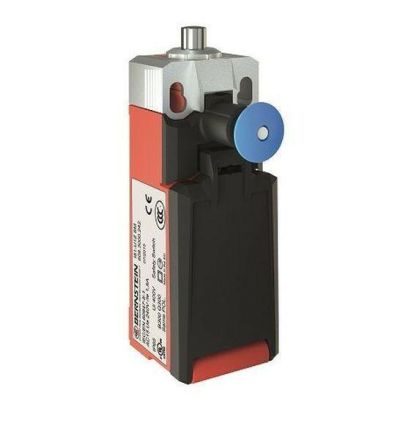

Bernstein 6083000242 I81-U1Z SM ISO

Bernstein 6083000242 I81-U1Z SM ISO

In stock

SKU: 1057350

Price on request

€35.67

€0

Overview

The modularity of the I81 allows for a high degree of flexibility in the implementation of individual customer solutions. The metal actuator locking mechanism and fastening clip make the product particularly robust and powerful.

Property	Value
Protection class (IP):	IP66/IP67
Housing material:	plastic
Weight:	0.06
Weight unit:	KG
Switching function:	Slow-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Suitable for safety functions:	yes
Design of the interface for safety-related communication:	without
Design of the electrical Connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	special design
Positive opening:	yes
Number of safety-related auxiliary contacts:	1
Design of the actuating element:	round plunger
Design of the interface:	without
Rated operating current Ie at DC-13, 24 V:	1.5 A
Width of the Sensors:	31 mm
Height of the sensor:	49.5 mm
Length of the sensor:	89.5 mm
Ambient temperature during operation:	-30 - 75 °C
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Switching function latching:	yes
Protection class (NEMA):	4X
