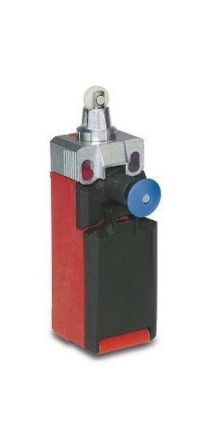

Bernstein 6083000243 I81-U1Z RK ISO

Bernstein 6083000243 I81-U1Z RK ISO

In stock

SKU: 1058619

Price on request

€41.17

€0

Overview

The modularity of the I81 allows for a high degree of flexibility in the implementation of individual customer solutions. The metal actuator locking mechanism and fastening clip make the product particularly robust and powerful.

Property	Value
Protection class (IP):	IP66/IP67
Housing material:	plastic
Weight:	0.06
Weight unit:	KG
Switching function:	Slow-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Suitable for safety functions:	yes
Design of the interface for safety-related communication:	without
Design of the electrical Connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	special design
Forced opening:	yes
Number of safety-related auxiliary contacts:	1
Design of the actuating element:	roller plunger
Design of the interface:	without
Rated operating current Ie at DC-13, 24 V:	1.5 A
Width of the Sensors:	31 mm
Height of the sensor:	49.5 mm
Length of the sensor:	101 mm
Ambient temperature during operation:	-30 - 75 °C
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Latching switching function:	yes
Alignment of the actuating element:	Straight roller plunger
Protection class (NEMA):	4X
