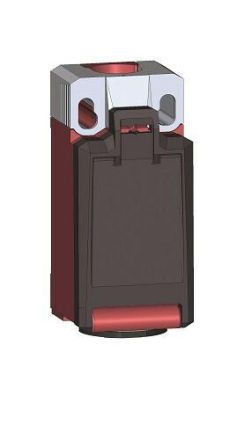

Amber 6083000275 IN65-SE2 M20

In stock

SKU: 1058111

Price on request

€24.32

€0

Overview

The IN62 and IN65 series are standard switches according to DIN EN 50047. Due to their dimensions and the variety of contacts and actuators, the switches can be used in almost any industrial application for safe position monitoring. The metal actuator locking and fastening clip make the product particularly robust and powerful.

Property	Value
Protection class (IP):	IP66/IP67
Housing material:	plastic
Weight:	0.06
Weight unit:	KG
Switching function:	Snap-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Suitable for safety functions:	yes
Design of the interface for safety-related communication:	without
Design of the electrical Connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Design of the actuating element:	without
Design of the interface:	without
Rated operating current Ie at DC-13, 24 V:	1.5 A
Width of the sensor:	31 mm
Height of the sensor:	30.3 mm
Length of the Sensors:	65.5 mm
Ambient temperature during operation:	-30 - 75 °C
Number of contacts as normally open:	2
Protection class (NEMA):	4X
