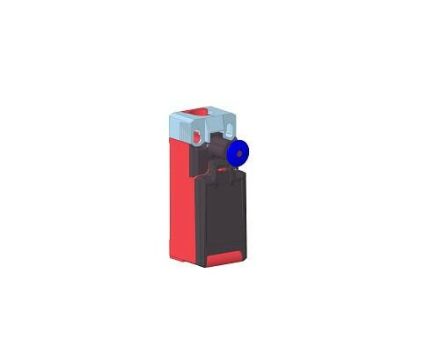

Bernstein 6083000318 I81-SE2 M20 A

In stock

SKU: 1057891

Price on request

€28.28

€0

Overview

The modularity of the I81 allows for a high degree of flexibility in the implementation of individual customer solutions. The metal actuator locking mechanism and fastening clip make the product particularly robust and powerful.

Property	Value
Protection class (IP):	IP66/IP67
Housing material:	plastic
Weight:	0.06
Weight unit:	KG
Switching function:	Snap-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Suitable for safety functions:	yes
Design of the interface for safety-related communication:	without
Design of the electrical Connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	special design
Forced opening:	yes
Design of the actuating element:	without
Design of the interface:	without
Rated operating current Ie at DC-13, 24 V:	1.5 A
Width of the sensor:	31 mm
Height of the sensor:	49.5 mm
Sensor length:	81 mm
Ambient temperature during operation:	-30 - 75 °C
Number of contacts as normally open:	2
Switching function latching:	yes
Protection class (NEMA):	4X
