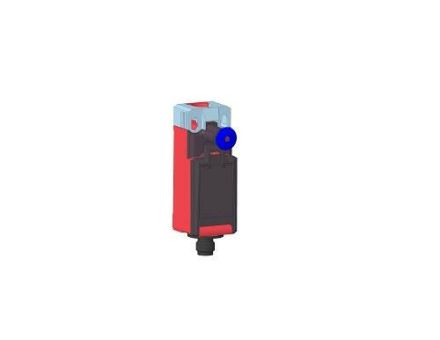

Bernstein 6083000322 I81-U1Z M12 A

In stock

SKU: 1057290

Price on request

€41.17

€0

Overview

The modularity of the I81 allows for a high degree of flexibility in the implementation of individual customer solutions. The metal actuator locking mechanism and fastening clip make the product particularly robust and powerful.

Property	Value
Protection class (IP):	IP66/IP67
Housing material:	plastic
Weight:	0.06
Weight unit:	KG
Switching function:	Slow-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Suitable for safety functions:	yes
Design of the interface for safety-related communication:	without
Explosion protection category for Gas:	without
Explosion protection category for dust:	without
Housing design:	special design
Forced opening:	yes
Number of safety-related auxiliary contacts:	1
Design of the actuating element:	without
Design of the interface:	without
Width of the sensor:	31 mm
Height of the sensor:	49.5 mm
Length of the sensor:	81 mm
Ambient temperature during Operating:	-30 - 75 °C
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Switching function latching:	yes
Protection class (NEMA):	4X
Design of the electrical connection:	Connector M12
