Bernstein 6085803116 BI2-A2Z W ISO

In stock
SKU: 1059205
€26.66
Into a basketIn the basketGo

Overview

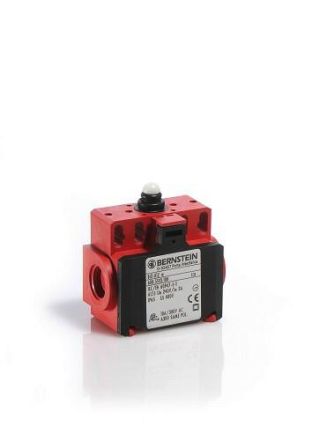

The Biggy is an insulated limit switch that, thanks to its two cable entries, is ideal for use in series-connected queries.

PropertyValue
Protection class (IP):IP65
Housing material:Plastic
Weight:0.08
Weight unit:KG
Statistical commodity number:85365011
Switching function:Slow-action switching element
Rated operating current Ie at AC-15, 230 V:3 A
Suitable for safety functions:yes
Interface design for safety-related Communication:without
Design of the electrical connection:Cable entry (metric)
Explosion protection category for gas:without
Explosion protection category for dust:without
Housing design:special design
Forced opening:yes
Number of safety-related auxiliary contacts:2
Design of the actuating element:domed plunger
Design of the interface:without
Width of the sensor:58 mm
Height of the sensor:32 mm
Length of the sensor:62 mm
Ambient temperature during operation:-30 - 80 °C
Number of contacts as normally closed:2

Characteristics

ManufacturerBernstein
HAN6085803116
GTIN4024337035890
Number of contacts as opener2
Number of safety-related auxiliary contacts2
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementTappet
Design of the electrical connectionCable entry (metric)
Rated operating current Ie at AC-15, 230 V3 A
Width of the sensor58 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designSpecial design
Weight0,08
Weight unit kg
Height of the sensor32 mm
Length of the sensor62 mm
Switching functionSlow-action switching element
IP protection)IP65
Statistical commodity code85365011
Ambient temperature during operation-30 - 80 °C
Housing materialPlastic
Forced openingYes
