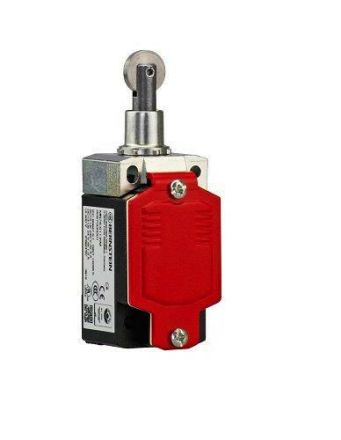

Amber 6087000022 6087000022 MN78-04 RM

Amber 6087000022 6087000022 MN78-04 RM

In stock

SKU: 1059702

Price on request

€54.18

€0

Overview

The MN78 are standard switches in accordance with DIN EN 50041. Due to their dimensions and the variety of contacts and actuators, the switches can be used in almost any industrial application for safe position monitoring. Both the actuators and the switch housings are made almost entirely of metal, making the MN78 particularly robust and durable.

Property	Value
Protection class (IP):	IP66/IP67
Housing material:	metal
Weight:	0.24
Weight unit:	KG
Switching function:	Slow-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Suitable for safety functions:	yes
Housing coating:	powder-coated
Interface design for safety-related Communication:	without
Design of the electrical connection:	Cable entry (metric)
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Design of the actuating element:	Roller plunger
Design of the interface:	without
Rated operating current Ie at DC-13, 24 V:	1.5 A
Width of the sensor:	42.5 mm
Height of the Sensors:	44.5 mm
Sensor length:	120.3 mm
Ambient temperature during operation:	-30 - 75 °C
Number of contacts as normally open:	4
Orientation of the actuating element:	Straight roller plunger
Protection class (NEMA):	4X
