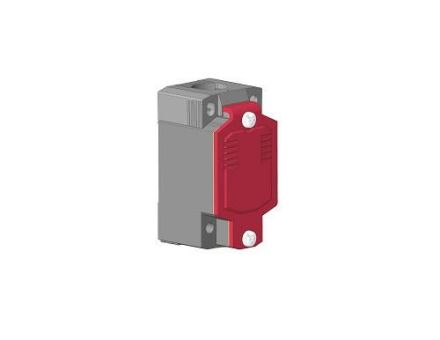

Bernstein 6087000126 6087000126 MN78-V22 M20 position switch

Bernstein 6087000126 6087000126 MN78-V22 M20 position switch

In stock

SKU: 1059591

Price on request

€40.77

€0

Overview

The MN78 are standard switches in accordance with DIN EN 50041. Due to their dimensions and the variety of contacts and actuators, the switches can be used in almost any industrial application for safe position monitoring. Both the actuators and the switch housings are made almost entirely of metal, making the MN78 particularly robust and durable.

Property	Value
Protection class (IP):	IP66/IP67
Housing material:	metal
Weight:	0.18
Weight unit:	KG
Switching function:	Slow-action switching element with overlap
Rated operating current Ie at AC-15, 230 V:	1.5 A
Suitable for safety functions:	yes
Housing coating:	powder-coated
Interface design for safety-related communication:	without
Design of the electrical connection:	M12 connector
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Positive opening:	yes
Number of safety-related auxiliary contacts:	2
Design of the actuating element:	without
Design of the interface:	without
Rated operating current Ie at DC-13, 24 V:	1.5 A
Sensor width:	42.5 mm
Sensor height:	44.5 mm
Sensor length:	77.5 mm
Ambient temperature during operation:	-30 - 75 °C
Number of contacts as normally closed:	2
Number of contacts as normally open:	2
Protection class (NEMA):	4X
