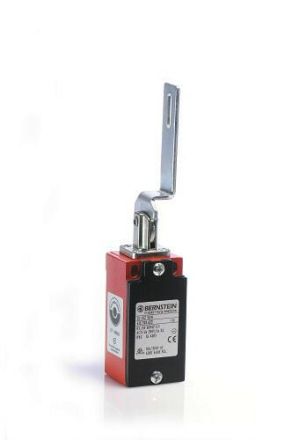

Bernstein 6121100882 GC-U1Z VKW Metal

In stock

SKU: 1057640

Price on request

€92.76

€0

Overview

Metal-encapsulated safety switches for pivoting devices. They are used for safety monitoring of doors, flaps and protective devices. In the VKW version with horizontal basic position, in the VKS version with vertical basic position.

Property	Value
Protection class (IP):	IP65
Housing material:	metal
Weight:	0.22
Weight unit:	KG
Statistical commodity number:	85365011
Switching function:	Slow-action switching element
Rated operating current Ie at AC-15, 230 V:	3 A
Suitable for safety functions:	yes
Coating Housing:	powder-coated
Design of the interface for safety-related communication:	without
Design of the electrical connection:	Cable entry (metric)
Explosion protection category for gas:	without
Housing design:	Cuboid
Forced opening:	yes
Number of safety-related auxiliary contacts:	1
Design of the actuating element:	other
Design of the interface:	without
Width of the sensor:	36 mm
Height of the sensor:	206.5 mm
Length of the sensor:	104.5 mm
Ambient temperature during operation:	-30 - 80 °C
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Alignment of the actuating element:	other
