HAN6185130018
GTIN4024337000232
Number of contacts as opener1
Number of safety-related auxiliary contacts1
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementTappet
Design of the electrical connectionCable entry (metric)
Rated operating current Ie at AC-15, 230 V3 A
Width of the sensor58 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designSpecial design
Weight0,09
Weight unit kg
Height of the sensor32 mm

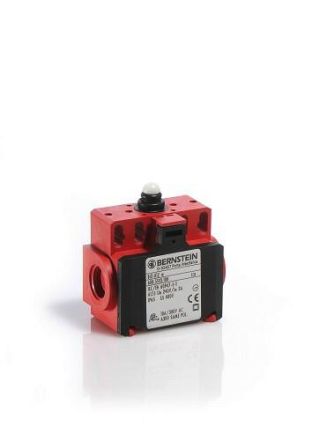

Short descriptionPosition switch plastic, snap system, 1 NC contact, cable entry 2 x M16 x1.5, with plastic plunger
Length of the sensor62 mm
Switching functionSnap action contact
IP protection)IP65
Statistical commodity code85365011
Ambient temperature during operation-30 - 80 °C
Housing materialPlastic
Forced openingYes
